Hannay 1100 Series Hose Reel

Hannay 1100 Series, Portable Hose Reels on Wheels to handle 3/8", 1/2", or 5/8" I.D. Hose.

Applications: Industrial, Spray, Grounds Maintenance, Lawn Care, Agriculture, Sewer, Waste, Processing, Construction, Mining, Utilities

• Continuous flow reels with swivel joint inlet, fluid hub, and outlet riser
• Direct crank rewind and cam-lock brake
• Removable steel handlebar
• Permanently attached crank
• GH prefix on model number (e.g., GH1100) includes garden hose thread on outlet, 5' lead-in hose, and hose end clips
• Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
• Standard outlet: 1/2" female NPT threads
• Pressures to 3,000 psi (207 bar)
• Temperatures from +32° F to +400° F (-0° C to +204° C)
• Comes with rubber tires (1100) or pneumatic tires (AT1200)

1. Specifications subject to change.
2. Some assembly required.
3. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
1100 3/8 275 47
1100 1/2 175 47
1100 5/8 125 47
AT1200 1/2 350 86
AT1200 5/8 250 86
AT1200 3/4 150 86
AT1200 1 100 86

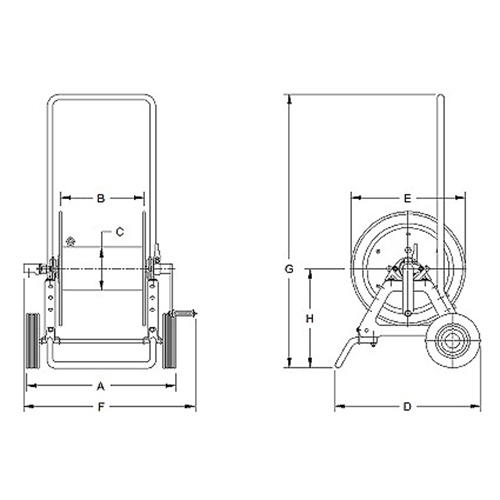

Dimensions for 1100 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
1100 21.5 12 6 20.12 16.5 25.25 42.5 13.38
AT1200 25.88 11.5 8 22.62 22.75 27 42.5 18.12
