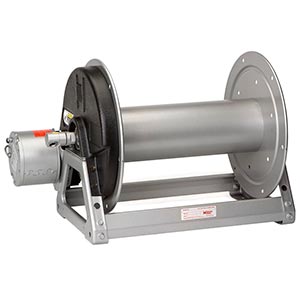

Hannay 1500 Series Hose Reel

Hannay 1500 Series Manual or Power Rewind Reels to handle single 3/8", 1/2", or 5/8" I.D. Hose.

Applications: Industrial, Spray, Pressure Wash, Grounds Maintenance, Lawn Care, Agriculture, Construction, Sewer, Waste, Transportation, Utilities, Processing, Mining Utilities

• Lightweight, compact reels designed for long lengths of hose in manual and power rewind
• Direct crank rewind is permanently attached
• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor
• Manual reels include: cam-lock drag brake, spring actuated pin lock
• Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
• Standard outlet: 1/2" female NPT threads
• Optional rollers: specify roller position when ordering
• Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify
• Temperatures from +20° F to +400° F (-7° C to +204° C)
• Consult mdi for other pressures and temperatures

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown.
3. Weights shown in chart are for crank rewind models. Add 18 lbs. for power rewind.
4. Dimension "F" is the overall length of standard model reels.
5. When ordering power rewind models, prefix model number with: A = Air Rewind, E = Electric Rewind, HD = Hydraulic Rewind.
6. Air rewind reels are supplied with control valve and 18" air hose; 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately; hydraulic rewind reels are not supplied with control valve.
7. Manual rewind available in RT or LB configurations only.
8. Be sure to check dimensions and weights prior to ordering.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.
Some models may require a different motor and/or clutch reduction unit depending on your application.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
1514-17-18 3/8 125 27
1514-17-18 1/2 75 27
1514-17-18 5/8 50 27
1516-17-18 3/8 175 28
1516-17-18 1/2 125 28
1516-17-18 5/8 75 28
1520-17-18 3/8 275 29
1520-17-18 1/2 175 29
1520-17-18 5/8 125 29
1526-17-18 3/8 400 31
1526-17-18 1/2 300 31
1526-17-18 5/8 200 31
1530-17-18 3/8 500 33
1530-17-18 1/2 375 33
1530-17-18 5/8 275 33
1536-17-18 1/2 475 35
1536-17-18 5/8 350 35

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
E1514-17-18 3/8 125 45
E1514-17-18 1/2 75 45
E1514-17-18 5/8 50 45
E1516-17-18 3/8 175 46
E1516-17-18 1/2 125 46
E1516-17-18 5/8 75 46
E1520-17-18 3/8 275 47
E1520-17-18 1/2 175 47
E1520-17-18 5/8 125 47
E1526-17-18 3/8 400 49
E1526-17-18 1/2 300 49
E1526-17-18 5/8 200 49
E1530-17-18 3/8 500 51
E1530-17-18 1/2 375 51
E1530-17-18 5/8 275 51
E1536-17-18 1/2 475 53
E1536-17-18 5/8 350 53

Air Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
A1514-17-18 3/8 125 42
A1514-17-18 1/2 75 42
A1514-17-18 5/8 50 42
A1516-17-18 3/8 175 43
A1516-17-18 1/2 125 43
A1516-17-18 5/8 75 43
A1520-17-18 3/8 275 44
A1520-17-18 1/2 175 44
A1520-17-18 5/8 125 44
A1526-17-18 3/8 400 46
A1526-17-18 1/2 300 46
A1526-17-18 5/8 200 46
A1530-17-18 3/8 500 48
A1530-17-18 1/2 375 48
A1530-17-18 5/8 275 48
A1536-17-18 1/2 475 50
A1536-17-18 5/8 350 50

Hydraulic Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
HD1514-17-18 3/8 125 42
HD1514-17-18 1/2 75 42
HD1514-17-18 5/8 50 42
HD1516-17-18 3/8 175 43
HD1516-17-18 1/2 125 43
HD1516-17-18 5/8 75 43
HD1520-17-18 3/8 275 44
HD1520-17-18 1/2 175 44
HD1520-17-18 5/8 125 44
HD1526-17-18 3/8 400 46
HD1526-17-18 1/2 300 46
HD1526-17-18 5/8 200 46
HD1530-17-18 3/8 500 48
HD1530-17-18 1/2 375 48
HD1530-17-18 5/8 275 48
HD1536-17-18 1/2 475 50
HD1536-17-18 5/8 350 50

Dimensions for 1500 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
1514-17-18 11 6 6 14.5 16.5 19.25 18.12 9.88 9.5 10
1516-17-18 13 8 6 14.5 16.5 21.25 18.12 9.88 11.5 10
1520-17-18 17 12 6 14.5 16.5 25.25 18.12 9.88 15.5 10
1526-17-18 23 18 6 14.5 16.5 31.25 18.12 9.88 21.5 10
1530-17-18 27 22 6 14.5 16.5 35.25 18.12 9.88 25.5 10
1536-17-18 33 28 6 14.5 16.5 41.25 18.12 9.88 31.5 10
A1514-17-18 11 6 6 14.5 19 16.5 18.12 9.88 9.5 10
A1516-17-18 13 8 6 14.5 19 18.5 18.12 9.88 11.5 10
A1520-17-18 17 12 6 14.5 19 22.5 18.12 9.88 15.5 10
A1526-17-18 23 18 6 14.5 19 28.5 18.12 9.88 21.5 10
A1530-17-18 27 22 6 14.5 19 32.5 18.12 9.88 25.5 10
A1536-17-18 33 28 6 14.5 19 38.5 18.12 9.88 31.5 10
E1514-17-18 11 6 6 14.5 19 16.5 18.12 9.88 9.5 10
E1516-17-18 13 8 6 14.5 19 18.5 18.12 9.88 11.5 10
E1520-17-18 17 12 6 14.5 19 22.5 18.12 9.88 15.5 10
E1526-17-18 23 18 6 14.5 19 28.5 18.12 9.88 21.5 10
E1530-17-18 27 22 6 14.5 19 32.5 18.12 9.88 25.5 10
E1536-17-18 33 28 6 14.5 19 38.5 18.12 9.88 31.5 10
HD1514-17-18 11 6 6 14.5 19 16.5 18.12 9.88 9.5 10
HD1516-17-18 13 8 6 14.5 19 18.5 18.12 9.88 11.5 10
HD1520-17-18 17 12 6 14.5 19 22.5 18.12 9.88 15.5 10
HD1526-17-18 23 18 6 14.5 19 28.5 18.12 9.88 21.5 10
HD1530-17-18 27 22 6 14.5 19 32.5 18.12 9.88 25.5 10
HD1536-17-18 33 28 6 14.5 19 38.5 18.12 9.88 31.5 10
