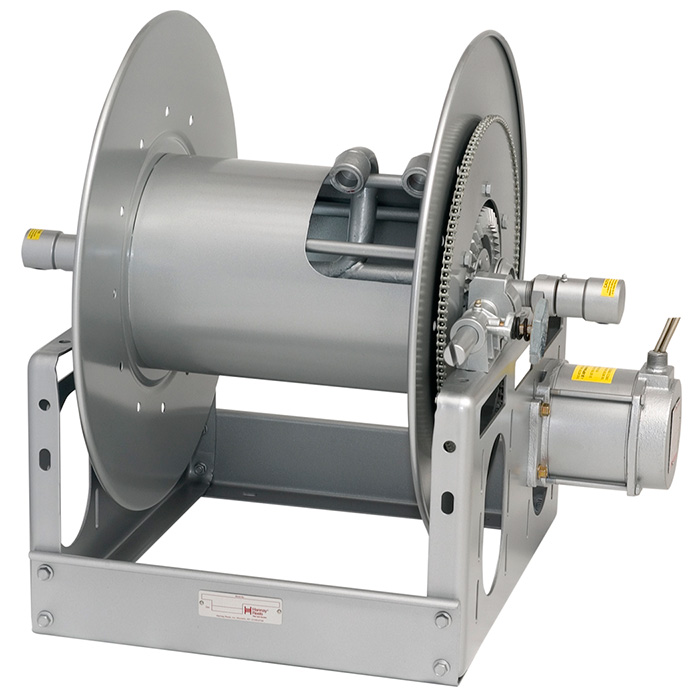

Hannay 7000 Series Twin Hose Reel

Hannay 7000 Series Manual or Power Rewind Reels to handle twin 3/4" or 1" I.D. Hose.

Applications: Dual Agents, Hydraulics, Industrial, Transportation

• Two swivel joint inlets and two outlet risers to handle two equal lengths of hose
• Choose gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor; auxiliary rewind is standard
• Crank rewind and power rewind reels, pinion brake standard
• Standard inlets: 90° ball bearing swivel joints, 1" female NPT threads
• Standard outlets: 1" female NPT threads
• Standard: inlet, outlet riser, and hub assembly are steel. Options: swivel joint also available in aluminum or stainless steel, riser and hub assembly also available in stainless steel
• Standard pressures to 2,000 psi (138 bar), available up to 5,000 psi (345 bar) – must specify
• Temperatures from -60° F to +250° F (-51° C to +121° C)
• Consult mdi for other pressures and temperatures; optional chain guard

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters.
3. Dimensions shown up to and including 30-31 disc size reflect pressed frames. All others are roll-formed channel frames.
4. Weights shown in chart are for crank rewind models. Add 40 lbs. for electric power rewind.
5. When ordering power rewind models, prefix model number with: A = Air Rewind, EP = Electric Rewind (1/2 hp), HD = Hydraulic Rewind, MX = Chain Drive Crank.
6. Air rewind reels are supplied with control valve and 18" air hose; 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately; hydraulic rewind reels are not supplied with control valve.
7. Be sure to check dimensions and weights prior to ordering.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.
Some models may require a different motor and/or clutch reduction unit depending on your application.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
7024-19-21 3/4 60 100
7024-19-21 1 25 100
7026-23-24 3/4 90 105
7026-23-24 1 50 105
7032-25-26 3/4 175 129
7032-25-26 1 100 129
7032-30-31 3/4 300 137
7032-30-31 1 175 137
7024-33-34 3/4 225 120
7024-33-34 1 150 120
7032-33-34 3/4 350 137
7032-33-34 1 225 137
MX7024-19-21 3/4 60 100
MX7024-19-21 1 25 100
MX7026-23-24 3/4 90 105
MX7026-23-24 1 50 105
MX7032-25-26 3/4 175 129
MX7032-25-26 1 100 129
MX7032-30-31 3/4 300 137
MX7032-30-31 1 175 137
MX7024-33-34 3/4 225 120
MX7024-33-34 1 150 120
MX7032-33-34 3/4 350 137
MX7032-33-34 1 225 137

Air Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
A7024-19-21 3/4 60 120
A7024-19-21 1 25 120
A7026-23-24 3/4 90 125
A7026-23-24 1 50 125
A7032-25-26 3/4 175 149
A7032-25-26 1 100 149
A7032-30-31 3/4 300 157
A7032-30-31 1 175 157
A7024-33-34 3/4 225 140
A7024-33-34 1 150 140
A7032-33-34 3/4 350 157
A7032-33-34 1 225 157

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
EP7024-19-21 3/4 60 140
EP7024-19-21 1 25 140
EP7026-23-24 3/4 90 145
EP7026-23-24 1 50 145
EP7032-25-26 3/4 175 169
EP7032-25-26 1 100 169
EP7032-30-31 3/4 300 177
EP7032-30-31 1 175 177
EP7024-33-34 3/4 225 160
EP7024-33-34 1 150 160
EP7032-33-34 3/4 350 177
EP7032-33-34 1 225 177

Hydraulic Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
HD7024-19-21 3/4 60 120
HD7024-19-21 1 25 120
HD7026-23-24 3/4 90 125
HD7026-23-24 1 50 125
HD7032-25-26 3/4 175 149
HD7032-25-26 1 100 149
HD7032-30-31 3/4 300 157
HD7032-30-31 1 175 157
HD7024-33-34 3/4 225 140
HD7024-33-34 1 150 140
HD7032-33-34 3/4 350 157
HD7032-33-34 1 225 157

Dimensions for 7000 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
7024-19-21 21 15.5 10.5 20.5 21.88 29.75 21.5 12.12 13 16.75
7026-23-24 23 17.5 10.5 20.5 23 31.75 23.5 12.12 15 16.75
7032-25-26 29.5 24 10.5 25.5 24.75 38.25 27.88 15.5 21.5 21.75
7032-30-31 29.5 24 10.5 25.5 28.75 38.25 29.88 15.5 21.5 21.75
7024-33-34 20.5 15.5 10.5 31.5 31.75 29.75 33.62 17.75 13 27.75
7032-33-34 29 24 10.5 31.5 31.75 38.25 33.62 17.75 21.5 27.75
MX7024-19-21 21 15.5 10.5 20.5 21.88 29.75 21.5 12.12 13 16.75
MX7026-23-24 23 17.5 10.5 20.5 23 31.75 23.5 12.12 15 16.75
MX7032-25-26 29.5 24 10.5 25.5 24.75 38.25 27.88 15.5 21.5 21.75
MX7032-30-31 29.5 24 10.5 25.5 28.75 38.25 29.88 15.5 21.5 21.75
MX7024-33-34 20.5 15.5 10.5 31.5 31.75 29.75 33.62 17.75 13 27.75
MX7032-33-34 29 24 10.5 31.5 31.75 38.25 33.62 17.75 21.5 27.75
A7024-19-21 21 15.5 10.5 20.5 21.88 32.12 21.5 12.12 13 16.75
A7026-23-24 23 17.5 10.5 20.5 23 34.12 23.5 12.12 15 16.75
A7032-25-26 29.5 24 10.5 25.5 24.75 40.62 27.88 15.5 21.5 21.75
A7032-30-31 29.5 24 10.5 25.5 28.75 40.62 29.88 15.5 21.5 21.75
A7024-33-34 20.5 15.5 10.5 31.5 31.75 32.12 33.62 17.75 13 27.75
A7032-33-34 29 24 10.5 31.5 31.75 40.62 33.62 17.75 21.5 27.75
EP7024-19-21 21 15.5 10.5 20.5 21.88 32.12 21.5 12.12 13 16.75
EP7026-23-24 23 17.5 10.5 20.5 23 34.12 23.5 12.12 15 16.75
EP7032-25-26 29.5 24 10.5 25.5 24.75 40.62 27.88 15.5 21.5 21.75
EP7032-30-31 29.5 24 10.5 25.5 28.75 40.62 29.88 15.5 21.5 21.75
EP7024-33-34 20.5 15.5 10.5 31.5 31.75 32.12 33.62 17.75 13 27.75
EP7032-33-34 29 24 10.5 31.5 31.75 40.62 33.62 17.75 21.5 27.75
HD7024-19-21 21 15.5 10.5 20.5 21.88 32.12 21.5 12.12 13 16.75
HD7026-23-24 23 17.5 10.5 20.5 23 34.12 23.5 12.12 15 16.75
HD7032-25-26 29.5 24 10.5 25.5 24.75 40.62 27.88 15.5 21.5 21.75
HD7032-30-31 29.5 24 10.5 25.5 28.75 40.62 29.88 15.5 21.5 21.75
HD7024-33-34 20.5 15.5 10.5 31.5 31.75 32.12 33.62 17.75 13 27.75
HD7032-33-34 29 24 10.5 31.5 31.75 40.62 33.62 17.75 21.5 27.75
