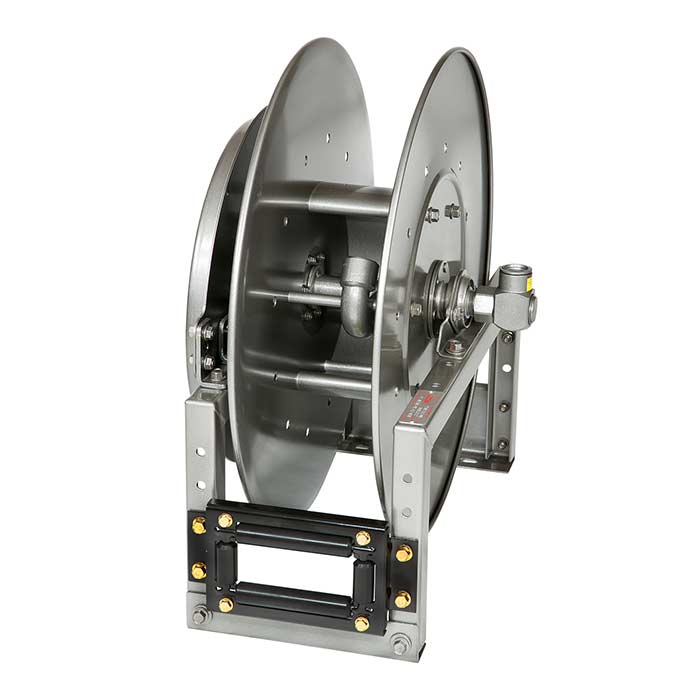

Hannay 800 Series Hose Reel

Hannay 800 Series Spring Rewind Reels to handle 3/4" or 1" I.D. hose.

Applications: Agriculture, Air, Construction, Fuel Dispensing, Grounds Maintenance, Lawn Care, Industrial, Land Drilling, Offshore Drilling, Maritime, Mining, Sewer, Waste, Waste Oil Evacuation, Transportation, Utilities, Processing, Spray, Water

• Roll-formed channel frame for heavy-duty applications.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° balanced pressure swivel joint, 1" female NPT threads.
• Standard outlet: 1" female NPT threads.
• Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify.
• Temperatures from -40° F to +250° F (-40° C to +121° C).
• Consult mdi for other pressures and temperatures.
4-way roller assembly.
• SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information
• Constant tension is available; consult mdi

Model shown in image represents standard configuration

1. Specifications subject to change.
2. Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult mdi.
3. Other sizes, from standard components, available on request.
4. Be sure to check dimensions and weights prior to ordering.
Note: A hose stop is necessary to keep spring from unwinding.

** Model 818-23-24J capacity based on low pressure air hose only. Not for vertical lift applications.

Spring Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
818-23-24J** 3/4 50 87
818-23-24J** 1 25 87
816-25-26B 3/4 60 96
816-25-26B 1 35 96
818-25-26B 3/4 70 102
818-25-26B 1 50 102
820-25-26-10.5A 3/4 85 131
820-25-26-10.5A 1 75 131
820-30-31-10.5A 1 100 137
820-30-31-15.5A 3/4 100 145

Dimensions for 800 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
818-23-24J** 11.25 6 10.5 23.25 24.38 15.5 23.88 12.5 6.5 20
816-25-26B 9.25 4 10.5 25 26.12 13.5 25.88 13.5 4.5 21.75
818-25-26B 11.25 6 10.5 25 26.12 15.5 25.88 13.5 6.5 21.75
820-25-26-10.5A 13.25 8 10.5 25 27 18.25 25.88 13.5 8.5 21.75
820-30-31-15.5A 13.25 8 15.5 28.5 30.5 18.25 31.38 17 8.5 25.25
