Series ATC1250 Click for Larger View

Call us TODAY at 727-835-0674 or
Toll Free at 800-761-4298

Get A Free Quote!

*Reel does not include hose or cable. Please call mdi for available hose/cable options.

Hannay ATC1250 Series Hose Reel

Hannay ATC1250 Series Portable Storage Reels on Wheels for storage of hose, cable, rope, or wire.

Applications: Industrial Maintenance, Construction, Agriculture, Grounds Maintenance, Construction, Cable, Lawn Care, Processing

• Direct crank rewind.
• Removable steel handlebar.
• Supplied with cam-lock drag brake.
• Comes with pneumatic tires.
• 4-1/2" x 9" (114 mm x 229 mm) drum opening to initiate winding.

1. Specifications subject to change.
2. Some assembly required.
3. When ordering, specify model number, O.D., length and weight of cable, hose, etc.
4. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model O.D. Size (in.) Length (ft.) Weight (lbs)
ATC1250 0.45 1200 84
ATC1250 0.50 1000 84
ATC1250 0.58 800 84

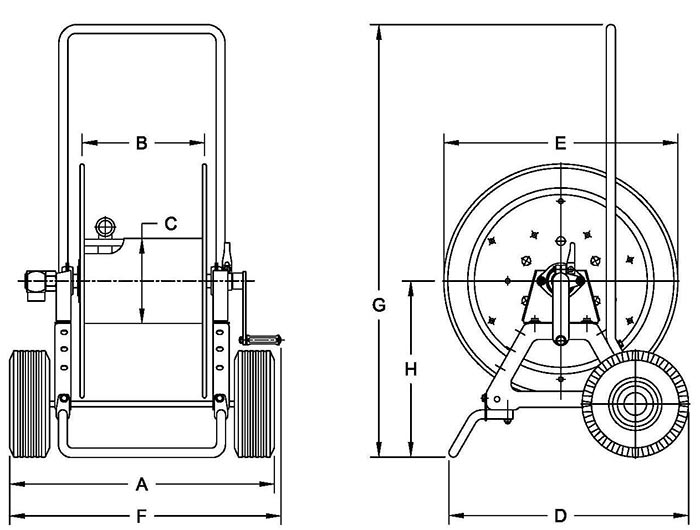

Dimensions for ATC1250 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
ATC1250 24.88 11.5 8 23.31 22.75 27.25 40 17.25

   Click to view Reels Accessories
