Hannay AVC Series Audio Video Cable Storage Reel

Hannay AVC Series Audio Video Cable Storage Reel for fast rollout and storage.

Applications: Audio Video, Communications, Mining, Cable

• Broadcast and pro-audio applications. Reels are stackable and have side mounted connector panels.
• Optional heavy-duty casters.
• Rugged steel and aluminum construction throughout. Square tubing frame.
• Black, non-reflective matte finish.
• Removable side panel (blank panel is supplied as standard).
• Standard strain relief inside panel compartment.
• Frame clips allow stacking.
• Ergonomic carrying handles.
• Adjustable cam-lock drag brake.
• Optional heavy-duty, locking caster wheels (set includes 2 locking and 2 non-locking casters) available on AV-2 reel (P/N 9949.0072).

1. Specifications subject to change.
2. Casters will add 2-3/4" to G dimension on AV-1 and add 3-1/2" to G dimension on AV-2 models.
3. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size Length (ft.) Weight (lbs)
AV-1 0.25 OD 600 14
AV-1 0.32 OD 350 14
AV-1 0.38 OD 225 14
AV-1 0.41 OD 200 14
AV-1 0.45 OD 150 14
AV-1 0.50 OD 125 14
AV-2 0.41 OD 750 25
AV-2 0.45 OD 600 25
AV-2 0.50 OD 500 25
AV-2 0.58 OD 350 25
AV-2 0.67 OD 250 25

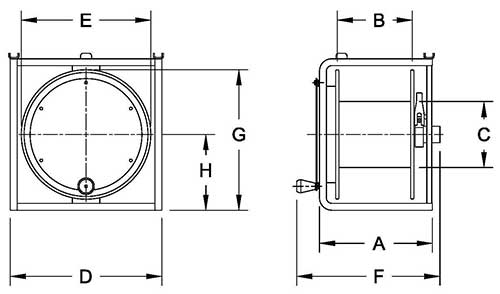

Dimensions for AV Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
AV-1 10.5 7 6 13.75 11.75 14.25 14.25 7
AV-2 13 9 8 20 18 16.25 20.5 10
