Hannay AVC16-14-16 Series Portable Audio Video Cable Storage Reel

Hannay AVC16-14-16 Series Portable Audio Video Cable Storage Reel for compact storage.

Applications: Audio Video, Communications, Mining, Cable

• Direct crank rewind.
• Adjustable cam-lock drag brake.
• Non-reflective, black matte finish standard.
• Optional pinlock available.
• Optional storage drum extension.
• Equipped with one durable rubber twist tie for cable ends.

Model shown in image represents standard configuration

1. Specifications subject to change.
2. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size Length (ft.) Weight (lbs)
AVC16-14-16 0.25 OD 1100 17
AVC16-14-16 0.32 OD 600 17
AVC16-14-16 0.38 OD 450 17
AVC16-14-16 0.41 OD 350 17
AVC16-14-16 0.45 OD 275 17
AVC16-14-16 0.49 OD 250 17
AVC16-14-16 0.58 OD 125 17
AVC16-14-16 0.67 OD 100 17

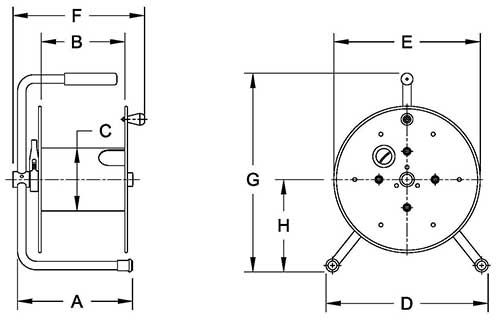

Dimensions for AVC16-14-16 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
AVC16-14-16 11 7.5 6 15.5 14 12.75 19.25 8.62

   Click to view Reels Accessories
