*Reel does not include cable. Please call mdi for available cable options.

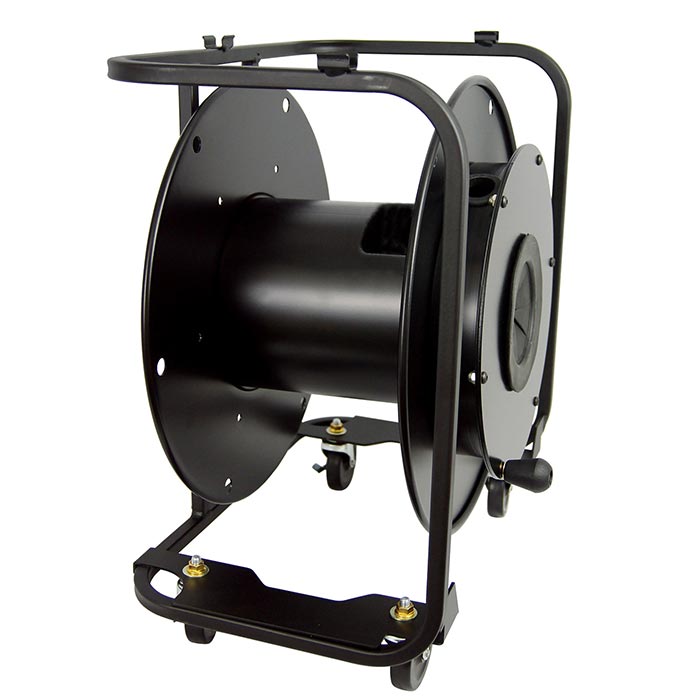

Hannay AVF-18 Series Cable Reel

Hannay AVF-18 Series Designed specifically for the unique needs of Broadcast SMPTE, TAC and opticalCON cable.
For use with 3mm to 9.2mm or larger broadcast fiber optic cable.

Applications: Audio Video, Communications, Mining, Cable, Fiber Optic

• Durable aluminum/steel construction, under 25 lbs.
• Designed for Tactical Fiber and Hybrid Fiber cable types.
• Quality construction designed for harsh outdoor environments.
• Non-reflective black matte finish is standard.
• External and/or internal drum storage with protective rubber grommet for easy access to lead out cable, while keeping dirt and debris out.
• Crank handle permanently attached to disc.
• Equipped with cam-lock drag brake system.
• Frame style with clips allow multiple reels to be stacked.
• Optional heavy-duty, locking caster wheels (set includes 2 locking and 2 non-locking casters). Specify when ordering, add "C" to model number.
• Optional pull handle is available (Part No. 9949.0500). Specify when ordering.
• Equipped with two durable rubber twist ties for cable ends.

1. Specifications subject to change.
2. For Model AVF-18 casters will add 4-3/4" to "G" dimension. When ordering casters add "C" to model number: AVF-18C.
3. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size (in.) Length (ft.) Weight (lbs)
AVF-18 TAC 1 (4.5 mm) 4000 24
AVF-18 TAC 2 (5 mm) 3000 24
AVF-18 TAC 4 (5.5 mm) 2500 24
AVF-18 TAC 6 (6 mm) 2000 24
AVF-18 TAC 12 (7 mm) 1600 24
AVF-18 SMPTE 311M (9.2 mm) 1000 24

Dimensions for AVF-18 Series
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
AVF-18 13 9 8 20 18.5 16.25 25.25 10
