Hannay CR6600 Series Electric Cord Reels

Hannay CR6600 Series manual and power rewind reels to handle live electric cables and cords.

Applications: Cable, Industrial, Construction, Utilities, Mining, Agriculture, Transportation, Sewer, Waste, Communications, Audio Video, Grounds Maintenance, Lawn Care, Land Drilling, Offshore Drilling, Marine

• Gear-driven crank rewind.
• Chain and sprocket drive powered by electric, compressed air, or hydraulic motor.
• Auxiliary rewind and pinion brake standard.
• Consult mdi for other brakes.
• 3-conductor, 45 amp, 600 volt collector assembly with #8 gauge wiring.
• Double brushes per circuit; brushes are copper graphite, copper alloy rings.
• Additional conductors or higher amperage are available at extra cost; must be specified (300 amps possible with custom design).
• Silver collector assemblies are available.
• Rollers and roller mounting brackets are accessory items; specify roller position.

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters.
3. Weights shown in chart are for crank rewind models. Add 18 lbs. for power rewind.
4. When ordering power rewind models, prefix model number with: A = Air Rewind, E = Electric Rewind, HD = Hydraulic Rewind.
5. Air rewind reels are supplied with control valve and 18" air hose; 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately; hydraulic rewind reels are not supplied with control valve.
6. Be sure to check dimensions and weights prior to ordering.
7. When ordering reels with a 4-conductor, add 2" to F dimensions.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size (Cord) Length (ft.) Weight (lbs)
CR6614-19-20 12/3 150 113
CR6614-19-20 12/4 125 113
CR6614-19-20 10/3 100 113
CR6614-19-20 10/4 100 113
CR6614-23-24 12/3 300 120
CR6614-23-24 12/4 250 120
CR6614-23-24 10/3 225 120
CR6614-23-24 10/4 200 120
CR6614-23-24 8/3 175 120
CR6614-25-26 12/3 350 133
CR6614-25-26 12/4 300 133
CR6614-25-26 10/3 250 133
CR6614-25-26 10/4 225 133
CR6614-25-26 8/3 200 133

Air Rewind

*Scroll to the right on mobile to see entire chart
Model Size (Cord) Length (ft.) Weight (lbs)
ACR6614-19-20 12/3 150 133
ACR6614-19-20 12/4 125 133
ACR6614-19-20 10/3 100 133
ACR6614-19-20 10/4 100 133
ACR6614-23-24 12/3 300 140
ACR6614-23-24 12/4 250 140
ACR6614-23-24 10/3 225 140
ACR6614-23-24 10/4 200 140
ACR6614-23-24 8/3 175 140
ACR6614-25-26 12/3 350 153
ACR6614-25-26 12/4 300 153
ACR6614-25-26 10/3 250 153
ACR6614-25-26 10/4 225 153
ACR6614-25-26 8/3 200 153

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model Size (Cord) Length (ft.) Weight (lbs)
ECR6614-19-20 12/3 150 131
ECR6614-19-20 12/4 125 131
ECR6614-19-20 10/3 100 131
ECR6614-19-20 10/4 100 131
ECR6614-23-24 12/3 300 138
ECR6614-23-24 12/4 250 138
ECR6614-23-24 10/3 225 138
ECR6614-23-24 10/4 200 138
ECR6614-23-24 8/3 175 138
ECR6614-25-26 12/3 350 151
ECR6614-25-26 12/4 300 151
ECR6614-25-26 10/3 250 151
ECR6614-25-26 10/4 225 151
ECR6614-25-26 8/3 200 151
EPCR6614-19-20 12/3 150 131
EPCR6614-19-20 12/4 125 131
EPCR6614-19-20 10/3 100 131
EPCR6614-19-20 10/4 100 131
EPCR6614-23-24 12/3 300 138
EPCR6614-23-24 12/4 250 138
EPCR6614-23-24 10/3 225 138
EPCR6614-23-24 10/4 200 138
EPCR6614-23-24 8/3 175 138
EPCR6614-25-26 12/3 350 151
EPCR6614-25-26 12/4 300 151
EPCR6614-25-26 10/3 250 151
EPCR6614-25-26 10/4 225 151
EPCR6614-25-26 8/3 200 151

Hydraulic Rewind

*Scroll to the right on mobile to see entire chart
Model Size (Cord) Length (ft.) Weight (lbs)
HDCR6614-19-20 12/3 150 133
HDCR6614-19-20 12/4 125 133
HDCR6614-19-20 10/3 100 133
HDCR6614-19-20 10/4 100 133
HDCR6614-23-24 12/3 300 140
HDCR6614-23-24 12/4 250 140
HDCR6614-23-24 10/3 225 140
HDCR6614-23-24 10/4 200 140
HDCR6614-23-24 8/3 175 140
HDCR6614-25-26 12/3 350 153
HDCR6614-25-26 12/4 300 153
HDCR6614-25-26 10/3 250 153
HDCR6614-25-26 10/4 225 153
HDCR6614-25-26 8/3 200 153

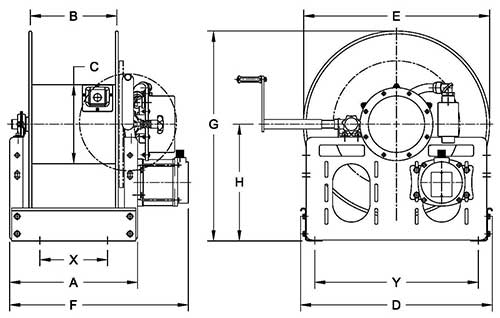

Dimensions for CR6600 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
CR6614-19-20 11 5.5 10.5 20.5 22 16 21.5 12.12 5.75 16.75
CR6614-23-24 11 5.5 10.5 20.5 23 16 23.5 12.12 5.75 16.75
CR6614-25-26 11 5.5 10.5 25.5 24.75 16 27.88 15.5 5.75 21.75
ACR6614-19-20 11 5.5 10.5 20.5 22 16 21.5 12.12 5.75 16.75
ACR6614-23-24 11 5.5 10.5 20.5 23 16 23.5 12.12 5.75 16.75
ACR6614-25-26 11 5.5 10.5 25.5 24.75 16 27.88 15.5 5.75 21.75
ECR6614-19-20 11 5.5 10.5 20.5 22 16 21.5 12.12 5.75 16.75
ECR6614-23-24 11 5.5 10.5 20.5 23 16 23.5 12.12 5.75 16.75
ECR6614-25-26 11 5.5 10.5 25.5 24.75 16 27.88 15.5 5.75 21.75
EPCR6614-19-20 11 5.5 10.5 20.5 22 16 21.5 12.12 5.75 16.75
EPCR6614-23-24 11 5.5 10.5 20.5 23 16 23.5 12.12 5.75 16.75
EPCR6614-25-26 11 5.5 10.5 25.5 24.75 16 27.88 15.5 5.75 21.75
HDCR6614-19-20 11 5.5 10.5 20.5 22 16 21.5 12.12 5.75 16.75
HDCR6614-23-24 11 5.5 10.5 20.5 23 16 23.5 12.12 5.75 16.75
HDCR6614-25-26 11 5.5 10.5 25.5 24.75 16 27.88 15.5 5.75 21.75
