Hannay EF2200 Series Hose Reel

Hannay EF2200 Series Electric Rewind Reels to handle 1/4" I.D. hydraulic Holmatro® CORE Technology™ coaxial twin hose. For CORE™ Rescue Tools.

Applications: Rescue, Fire

• Lighter weight hose and single fitting connection when compared with traditional rescue tool hose.
• Chain and sprocket drive powered by an electric motor.
• Adjustable spring drag brake standard on all models.
• CORE Technology™ swivel joint inlet and fluid path.
• Optional mdi-installed 4-way roller guide available.
• Pressures to 10500 psi (724 bar).
• Temperatures from -30°F to +225°F (-34°C to +107°C).
• Divider disc separates hose from adapter block outlet.
• Optional polished stainless steel discs and sprocket with chrome frame.

1. Specifications subject to change.
2. Electric rewind models available in either 12v or 24v DC. Reels supplied with switch and solenoid.
3. Add 2-1/2" to "E" dim. and 1/2" to "G" dim. with assembly "C2" roller installed in top wind position.
4. Be sure to check all dimensions and weights prior to ordering. Must specify right- or left-handed configurations.

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
EF2216-17-18 1/4 60 87
EF2220-17-18 1/4 100 89

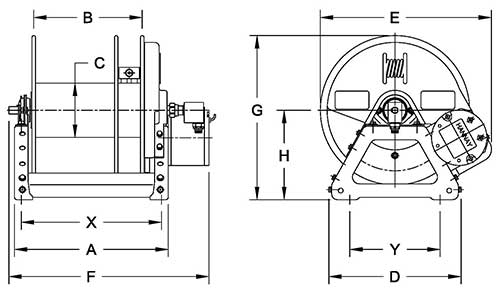

Dimensions for EF2200 Series
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
EF2216-17-18 13 8 6 14.5 19 18.38 18.12 9.88 11.5 10
EF2220-17-18 17 12 6 14.5 19 22.38 18.12 9.88 15.5 10
