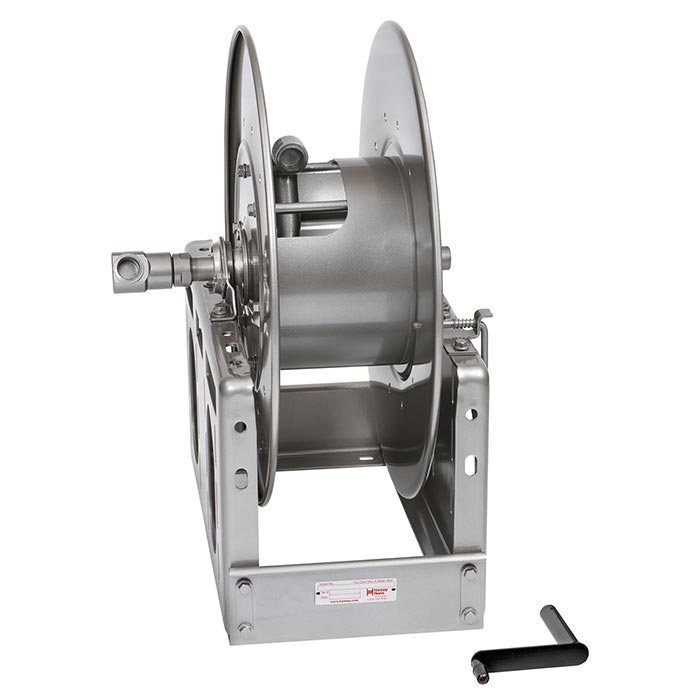

Series F3100 Click for Larger View

Call us TODAY at 727-835-0674 or
Toll Free at 800-977-1634

Get A Free Quote!

*Reel does not include hose. Please call mdi for available hose options.

Hannay F3100 Series Hose Reels

Hannay F3100 Series to handle 3/4" or 1-1/2" I.D. hose for industrial fire protection.

Applications: Fire, Rescue, Land Drilling, Offshore Drilling, Marine

• The reel can be installed on the floor or wall.
• Steel construction is standard. Aluminum or stainless steel construction is available.
• Choose disc rewind or removable direct crank rewind.
• Supplied with spring actuated pinlock.
• Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel).
• Rollers and roller mounting brackets are accessory items. Specify roller position.
• Standard inlet: 1" 90° ball bearing swivel joint with 1" female NPT threads.
• Standard outlet: 1" male NST threads (1.375" x 8 threads per inch).
• Pressures to 1000 psi (69 bar).
• Temperatures from -25°F to +225°F (-32°C to+121°C).
• Consult mdi for other sizes and/or threads.
• Consult mdi for other pressures and temperatures.
• Removable crank rewind is standard.
• For hand-over-hand rewind option (less crank), consult mdi.
• CAUTION: When using Niedner Reeltex® hose, a special riser and/or larger drum diameter is required (consult mdi).

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters. 3. Power rewind is not available on these models. See Series "F" or "FF". 4. 4" clearance needed for crank handle removal. 5. Be sure to check dimensions and weights prior to ordering.

Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Length (ft.) Weight (lbs)
F3116-25-26 3/4 100 85
F3116-25-26 1 75 85
F3120-25-26 3/4 150 94
F3120-25-26 1 100 94
F3124-25-26 3/4 200 103
F3124-25-26 1 125 103
F3128-25-26 3/4 350 113
F3128-25-26 1 250 113
F3124-30-31 3/4 275 103
F3124-30-31 1 175 103
F3130-30-31 1 300 113


Dimensions for F3100 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
F3116-25-26 13 7.5 10.5 25.5 24 25.5 27.88 15.5 7.75 21.75
F3120-25-26 17 11.5 10.5 25.5 24 29.5 27.88 15.5 9 21.75
F3124-25-26 21 15.5 10.5 25.5 24 33.5 27.88 15.5 13 21.75
F3128-25-26 25.5 20 10.5 25.5 24 37 27.88 15.5 17.5 21.75
F3124-30-31 21 15.5 10.5 25.5 28.75 33.5 29.88 15.5 13 21.75
F3130-30-31 27.5 22 10.5 25.5 28.75 40 29.88 15.5 19.5 21.75
