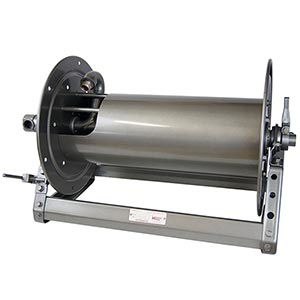

Series F4000 Click for Larger View

Series F4000 Click for Larger View

Call us TODAY at 727-835-0674 or
Toll Free at 800-977-1634

Get A Free Quote!

*Reel does not include hose. Please call mdi for available hose options.

Hannay F4000 Series Hose Reels

Compact Reels for Booster Hose
To handle 3/4" or 1" I.D. hose

Applications: Fire, Rescue, Land Drilling, Offshore Drilling, Marine

• Choose direct crank rewind (removable) or chain and sprocket drive powered by electric, hydraulic or compressed air motor.
• Power rewind supplied with comet brake.
• Direct crank rewind supplied with cam-lock brake.
• Standard inlet: 90° ball bearing swivel joint with 1" female NPT threads.
• Standard outlet: 1" male NST threads (1.375" x 8 threads per inch).
• Consult mdi for other sizes and/or threads.
• Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel).
• Rollers and roller mounting brackets are accessory items. Specify roller position.
• Pressures to 1000 psi (69 bar).
• Temps from -25°F to +250°F (-32°C to +121°C).
• Consult mdi for other pressures and temperatures.

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters.
3. Weights shown in chart are for crank rewind models. Add 18 lbs. for power rewind.
4. Dimension "F" is the overall length of standard model reels. On crank rewind models, the dimension shown is with the crank in rewind position. Reels require 3-1/2" clearance to remove crank handle.
5. When ordering power rewind models, prefix number with: A = Air Rewind; E = Electric Rewind; HD = Hydraulic Rewind.
6. Air rewind reels are supplied with control valve and 18" air hose; 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch, but can be ordered separately; hydraulic rewind reels are not supplied with control valve.
7. Be sure to check dimensions and weights prior to ordering.

Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Length (ft.) Weight (lbs)
F4018-17-18 3/4 50 36
F4018-17-18 1 35 36
F4024-17-18 3/4 100 46
F4024-17-18 1 50 46
F4030-17-18 3/4 150 57
F4030-17-18 1 75 57
F4038-17-18 3/4 200 70
F4038-17-18 1 100 70

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
EF4018-17-18 3/4 50 76
EF4018-17-18 1 35 76
EF4024-17-18 3/4 100 86
EF4024-17-18 1 50 86
EF4030-17-18 3/4 150 97
EF4030-17-18 1 75 97
EF4030-17-18 1 75 97
EF4038-17-18 3/4 200 110
EF4038-17-18 1 100 110

Air Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
AF4018-17-18 3/4 50 56
AF4018-17-18 1 35 56
AF4024-17-18 3/4 100 66
AF4024-17-18 1 50 66
AF4030-17-18 3/4 150 77
AF4030-17-18 1 75 77
AF4038-17-18 3/4 200 90
AF4038-17-18 1 100 90

Dimensions for F4000 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
F4018-17-18 15 10 8 14.5 16.5 27.75 18.12 9.88 13.5 10
F4024-17-18 21 16 8 14.5 16.5 33.75 18.12 9.88 19.5 10
F4030-17-18 27 22 8 14.5 16.5 39.75 18.12 9.88 25.5 10
F4038-17-18 35 30 8 14.5 16.5 47.75 18.12 9.88 33.5 10
EF4018-17-18 15 10 8 14.5 19 20.5 18.12 9.88 13.5 10
EF4024-17-18 21 16 8 14.5 19 26.5 18.12 9.88 19.5 10
EF4030-17-18 27 22 8 14.5 19 32.5 18.12 9.88 25.5 10
EF4038-17-18 35 30 8 14.5 19 40.5 18.12 9.88 33.5 10
AF4018-17-18 15 10 8 14.5 19 20.5 18.12 9.88 13.5 10
AF4024-17-18 21 16 8 14.5 19 26.5 18.12 9.88 19.5 10
AF4030-17-18 27 22 8 14.5 19 32.5 18.12 9.88 25.5 10
AF4038-17-18 35 30 8 14.5 19 40.5 18.12 9.88 33.5 10
