Hannay N600 Series Twin Hose Reel

Hannay N600 Series Spring Rewind Reels to handle 1/4", 3/8", or 1/2" I.D. twin hose.

Applications: Agriculture, Aviation, Construction, Grounds Maintenance, Lawn Care, Industrial, Land Drilling, Offshore Drilling, Marine, Mining, Transportation, Utilities, Lubrication, Processing, Spray

• Narrow frame and compact mounting base.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlets: 90° balanced pressure swivel joints, 1/2" female NPT threads.
• Standard outlets: 1/2" female NPT threads.
• Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify.
• Temperatures from -60° F to +250° F (-51°C to +121°C).
• Consult mdi for other pressures and temperatures.
• 4-way roller assembly.
• Constant tension is available consult mdi.
• Optional full flow swivel joint is available upon request. Add 1 3/4" to F dimension.
• SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information

1. Specifications subject to change.
2. Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult mdi.
3. Other sizes, from standard components, available on request.
4. Be sure to check dimensions and weights prior to ordering.
5. For hydraulic tool circuit applications, full flow swivels with Viton seals are recommended (add 2.25" to overall width of reel in chart).
Note: A hose stop is necessary to keep spring from unwinding. A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Spring Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
N615-19-20C 1/4 35 63
N615-19-20C 3/8 35 63
N615-19-20C 1/2 20 63
N617-19-20J 1/4 50 66
N617-19-20J 3/8 50 66
N617-19-20J 1/2 25 66
N615-23-24B 1/4 65 87
N615-23-24B 3/8 60 87
N615-23-24B 1/2 30 87
N617-25-26-15.5A 1/4 100 120
N617-25-26-15.5A 3/8 85 120
N617-25-26-15.5B 1/4 75 93
N617-25-26-15.5B 3/8 75 93
N617-25-26-15.5B 1/2 50 93

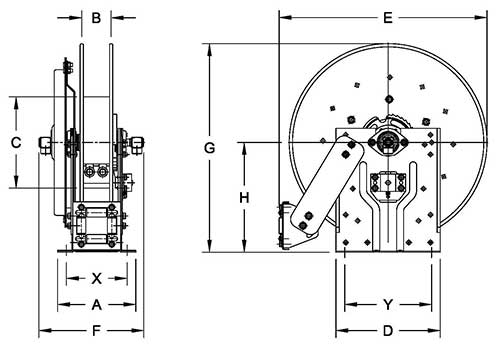

Dimensions for N600 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
N615-19-20C 9 3 10.5 12 20.75 11.75 20 10.62 7 10
N617-19-20J 11 5 10.5 12 20.75 13.75 20 10.62 9 10
N615-23-24B 9 3 10.5 12 23.75 11.75 24 12.62 7 10
N617-25-26-15.5A 11 5 15.5 12 25.25 14.5 26 13.62 9 10
N617-25-26-15.5B 11 5 15.5 12 25.25 13.75 26 13.62 9 10
