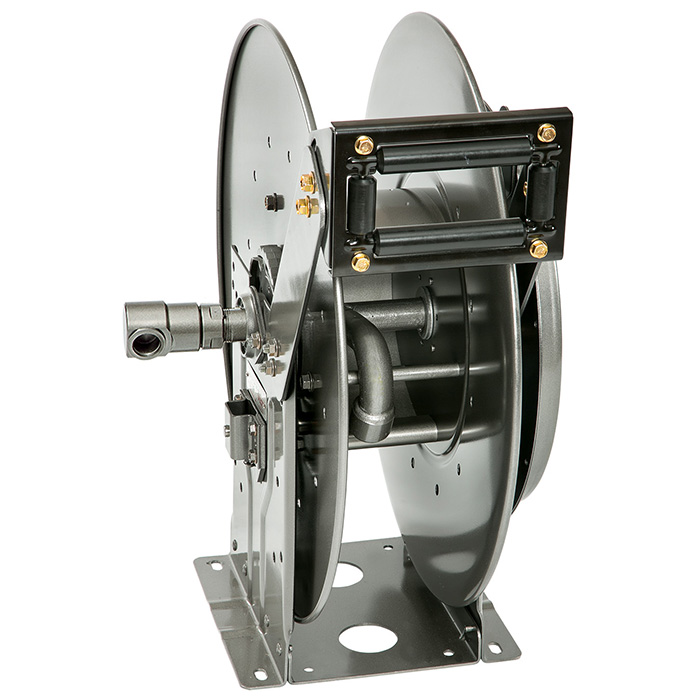

Hannay N800 Series Hose Reel

Hannay N800 Series Spring Rewind Reels to handle 3/4" or 1" I.D. hose.

Applications: Agriculture, Construction, Grounds Maintenance, Lawn Care, Industrial, Land Drilling, Offshore Drilling, Marine, Mining, Sewer, Waste, Transportation, Utilities, Lubrication, Processing, Spray

• Standard N series has a narrow frame and compact mounting base.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° balanced pressure swivel joint 1" female NPT threads.
• Standard outlet: 1" female NPT threads.
• Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify.
• Temperatures from -40° F to +250° F (-40° C to +121° C).
• Consult mdi for other pressures and temperatures.
• 4-way roller assembly.
• SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information
• Constant tension is available consult mdi.

1. Specifications subject to change.
2. Reels models and capacities shown are for standard drag applications; for vertical lift applications, consult mdi.
3. Other sizes, from standard components, available on request.
4. Be sure to check dimensions and weights prior to ordering.
Note: A hose stop is necessary to keep spring from unwinding. Not for vertical lift applications.
** Model N818-23-24J capacity based on low pressure air hose only. Not for vertical lift applications.

Spring Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
N816-19-20J 3/4 25 75
N816-19-20J 1 15 75
N818-23-24J** 3/4 50 87
N818-23-24J** 1 25 87
N816-25-26B 3/4 60 96
N816-25-26B 1 35 96
N818-25-26B 3/4 70 102
N818-25-26B 1 50 102

Dimensions for N800 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
N816-19-20J 10 4 10.5 12 20.75 13 20 10.62 8 10
N818-23-24J** 12 6 10.5 12 23.75 15 24 12.62 10 10
N816-25-26B 10 4 10.5 12 25.25 13 26 13.62 8 10
N818-25-26B 12 6 10.5 12 25.25 15 26 13.62 10 10

   Click to view Reels Accessories
