*Reel does not include hose. Please call mdi for available hose options.

Hannay RM Series Hose Reel

Remote Controlled Power Rewind Reels

To handle 3/8" or 1/2" I.D. hose

Applications: Spray, Grounds Maintenance, Lawn Care, Agriculture, Industrial

• Heavy-duty 12v DC 1/3 HP electric reel.
• Standard ("RM") Models – Rewind only, hose is pulled out manually.
• Optional ("RM-REV") Models – Reversible motor. Features both Rewind and Unwind.
• Variable speed control allows user to choose comfortable rewind speed.
• Long-range (over 500 ft. range) pocket-sized remote, operating on 340 MHz band.
• Adjustable brake prevents hose creep during transit.
• Standard inlet: 90° ball bearing swivel joint with 1/2" female NPT threads.
• Standard outlet: 1/2" female NPT. Optional outlet: 3/8" female NPT or 3/4" male GHT (garden thread).
• Pressures to 3,000 psi (207 bar). Temperatures to +400° (+204°C).
• Chain guard available upon request, must be specified.
• No electromechanical components that can break (relays, solenoids, circuit breakers). Simple direct wiring directly to motor and battery.
• Overcurrent and under-voltage protection are all built into the electronics.
• Remote transmitter is uniquely paired with base receiver to prevent interference.

1. Specifications subject to change.
2. Be sure to check dimensions and weights prior to ordering.

Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
RME-6014-28-29-8 3/8 300 130
RME-6014-28-29-8 1/2 150 130
RME-6014-33-34-10.5 3/8 500 137
RME-6014-33-34-10.5 1/2 300 137

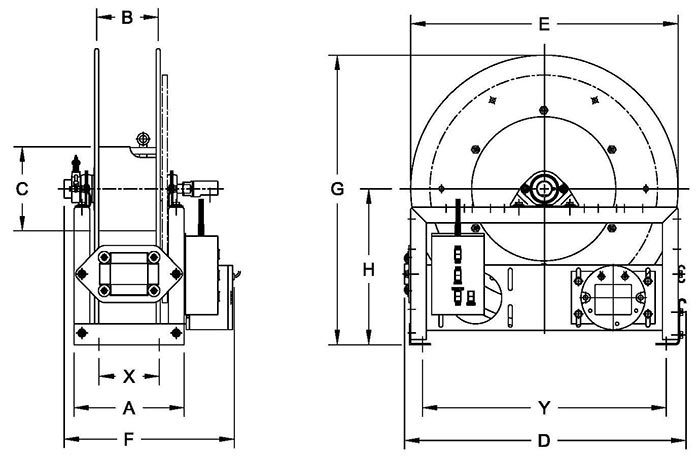

Dimensions for RM Series
*Scroll to the right on mobile to see entire chart
Model A B B1 D E F G H X Y
RME-6014-28-29-8 10.5 5.5 8 27 26.75 16.5 28.25 14.88 5.75 23.25
RME-6014-33-34-10.5 10.5 5.5 10.5 31.5 31.75 16.5 33.63 17.75 5.75 27.75
