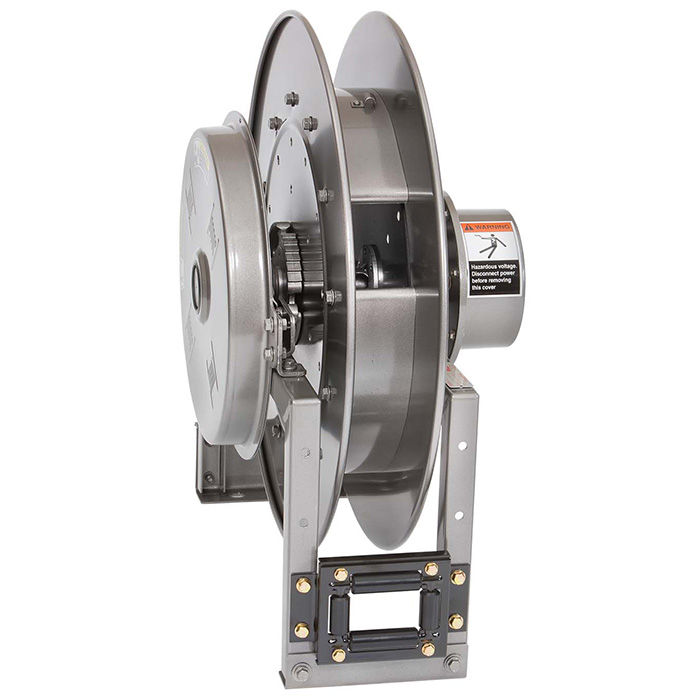

Hannay SCR700 Series Electric Cable Reels

Hannay SCR700 Series Spring Rewind Reels to handle 14/3, 12/3, 10/3, or 8/3 live electric cord or cable.

Applications: Cable, Industrial, Construction, Utilities, Mining, Agriculture, Transportation, Grounds Maintenance, Land Drilling, Offshore Drilling, Marine

• Heavy-duty spring motor.
• Non-sparking ratchet.
• Declutching arbor.
• Consult mdi for constant tension applications.
• 3-conductor, 45 amp, 600 volt collector assembly with #8 gauge wiring.
• Double brushes per circuit; brushes are copper graphite with copper alloy rings.
• Additional conductors or higher amperage (up to 300 amps) available; consult mdi.
• Silver collector available.
• Supplied with 4-way roller assembly; roller position must be specified.
• Cable stop should be used.
• For vertical lift, stretch and/or crane installation, consult mdi for proper spring specifications.

*Reel does not include cable. Please call mdi for available cable options.

1. Specifications subject to change.
2. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size (Cord) Length (ft.) Weight (lbs)
SCR716-30-31-20A 14/3 120 127
SCR716-30-31-20A 12/3 120 127
SCR716-30-31-20A 10/3 120 127
SCR716-30-31-20A 8/3 120 127

Dimensions for SCR700 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
SCR716-30-31-20A 9.25 4 20 28.5 29.62 17 31.38 17 4.5 25.25
