*Reel does not include hose. Please call mdi for available hose options.

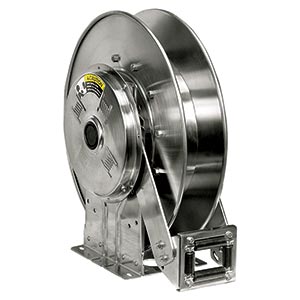

Hannay SSN800 Series Hose Reel

Stainless Steel Spring Rewind Reels to handle 3/4" or 1" I.D. Hose.
Applications: Stainless Steel, Processing, Industrial, Land Drilling, Offshore Drilling, Marine, Dairy, Caustic Materials, Air, Water, Chemical Transfer, Food Transfer

• Standard N series has a narrow frame and compact mounting base.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° stainless steel ball bearing swivel joint, 1" female NPT threads.
• Standard outlet: 1" female NPT threads.
• Pressures to 1000 psi (69 bar).
• Temperatures from +20° F to +400° F (-7° C to +204° C).
• Consult mdi for other pressures and temperatures.
• 4-way roller assembly.
• Constant tension is available consult mdi.
• 304 stainless steel construction.

1. Specifications subject to change.
2. Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult mdi.
3. Other sizes, from standard components, available on request.
4. Mill finish is standard; satin or polished finishes are optional.
5. Be sure to check dimensions and weights prior to ordering.

Note: A hose stop is necessary to keep spring from unwinding.
**Model SSN818-23-24J capacity based on low pressure air hose only. Not for vertical lift applications.

Spring Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
SSN816-19-20J 3/4 25 75
SSN816-19-20J 1 15 75
SSN818-23-24J** 3/4 50 87
SSN818-23-24J** 1 25 87
SSN816-25-26B 3/4 60 96
SSN816-25-26B 1 35 96
SSN818-25-26B 3/4 70 102
SSN818-25-26B 1 50 102

Dimensions for SSN800 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
SSN816-19-20J 10 4 10.5 12 20.75 14.25 20 10.62 8 10
SSN818-23-24J 12 6 10.5 12 23.75 16.25 24 12.62 10 10
SSN816-25-26B 10 4 10.5 12 25.25 14.25 26 13.62 8 10
SSN818-25-26B 12 6 10.5 12 25.25 16.25 26 13.62 10 10
