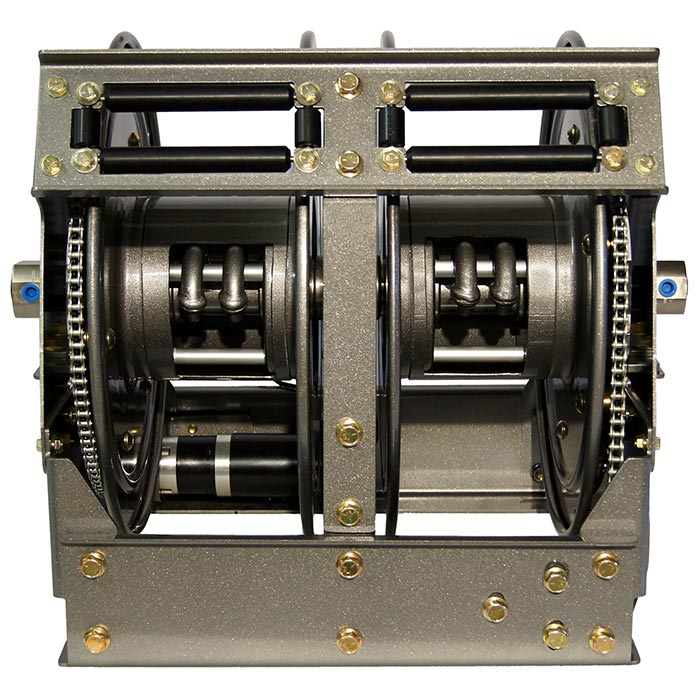

Hannay TEF2500 Series Hose Reel

Hannay TEF2500 Series Electric Rewind Dual Spool Reels to handle twin 1/4" I.D. hose.

Applications: Power Rescue Tools

• Chain and sprocket drive powered by an electric gear motor.
• Two 90° swivel joints with 1/4" female NPT threads.
• Rescue tool manufacturer must be specified to determine threads and packing material required.
• Pressures to 10,500 psi (724 bar).
• Temperatures from -20°F to +225°F (-29°C to + 107°C).
• Dual spools to operate two independent power rescue tools.
• Rollers and roller mounting brackets are accessory items. Specify roller position.
• Series TEF reels can be built in any combination of hydraulic, air or electric cable applications, please consult mdi for specifications and a quote.

1. Specifications subject to change.
2. Be sure to check dimensions and weights prior to ordering.
3. Model TEF2514-17-18 hose capacity is a tight fit and only valid for Hurst hose.
4. Model TEF2516-17-18 is the preferred model for all 100 ft. hose assemblies.
5. The narrower model TEF2514-17-18 will only hold 100 ft. of Hurst (5000 psi) twin hose and only when perfectly wrapped.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
TEF2514-17-18 1/4 100 90
TEF2516-17-18 1/4 100 95

Dimensions for TEF2500 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
TEF2514-17-18 17.5 6 6 18 16.5 22.75 18.13 9.88 16.25 14.75
TEF2516-17-18 21.25 8 6 18 16.5 26.75 18.13 9.88 20.25 14.75
